July 16, 2014

Tracking the breakup of Arctic summer sea ice

News and Information

As sea ice begins to melt back toward its late September minimum, it is being watched as never before. Scientists have put sensors on and under ice in the Beaufort Sea for an unprecedented campaign to monitor the summer melt.

The international effort hopes to figure out the physics of the ice edge in order to better understand and predict open water in Arctic seas.

red plane on ice

M. Ohmart, Univ. of Washington

The international team set out the instruments in March, when the floating ice was thick enough to land a plane.

“This has never been done at this level, over such a large area and for such a long period of time,” said principal investigator Craig Lee, an oceanographer at the University of Washington’s Applied Physics Laboratory. “We’re really trying to resolve the physics over the course of an entire melt season.”

The project is funded by the U.S. Office of Naval Research. It includes scientists from the Naval Postgraduate School, the Naval Research Laboratory, Cambridge University, Yale University, Laboratoire d’Oceanographie de Villefranche, Woods Hole Oceanographic Institution, the British Antarctic Survey, the Scottish Association for Marine Science and the Korean Polar Research Institute.

Over the next months, the campaign will look at whether the processes that drive sea ice melt will change with increasing open water to the south. For example, open water absorbs more solar radiation, which can lead to more ice melt. Open water also exposes the ocean to wind and waves, which could lead to more mixing that would bring warmer, deeper water up into contact with the ice.

Observations will show how much the open water allows surface waves to grow and break up the ice, or how winds blowing across open water or broken ice could churn up the water lower down. They also will study how deep the sun’s heat penetrates, how weather and currents affect the ice, and what all this means for the growth of tiny plants and animals living in the ice.

broken ice

Eric Regehr, U.S. Fish and Wildlife Service

The marginal ice zone – the region between solid ice and open water – can be as much as a few miles across. Its character depends on conditions leading up to the melt.

“As there is more and more open water in the summer, the processes that control the evolution of the sea ice are changing,” said Luc Rainville, an oceanographer at the UW Applied Physics Laboratory.

“Increased open water likely means more wind-driven mixing,” Rainville said. “Similarly surface waves will be able to travel further in open water, gaining height and power. Once these waves meet the ice they contribute to breaking the ice edge.”

The study’s focus is the marginal ice zone, the region between the solid ice and the open water, which is just now beginning to form along the coast of northern Alaska and Canada.

More information and real-time data is on the Marginal Ice Zone project page

In March, when the ice was thick enough to land aircraft, researchers installed four groups of sensors on the ice in a line that stretched nearly 200 miles to the north. Each site includes instruments to measure the atmosphere, ice and ocean. The line is designed to continuously measure the moving target of the marginal ice zone, with southern instruments melting out and the northern ones taking their place. Ocean sensors that move up and down will measure conditions under the ice.

In late July, after the ice edge recedes to expose the first open water along Alaska’s north coast, researchers will release four robotic gliders. These gliders, developed by the UW Applied Physics Laboratory, will navigate using GPS in open water and from acoustic beacons suspended from the ice when under ice. When a glider pops up to the surface, researchers can download the data and send new commands from shore – for example, direct gliders to monitor the effects of a big incoming storm, or investigate a region that’s melting quickly. Another instrument developed at the UW, the SWIFT float, will take precise measurements of surface waves.

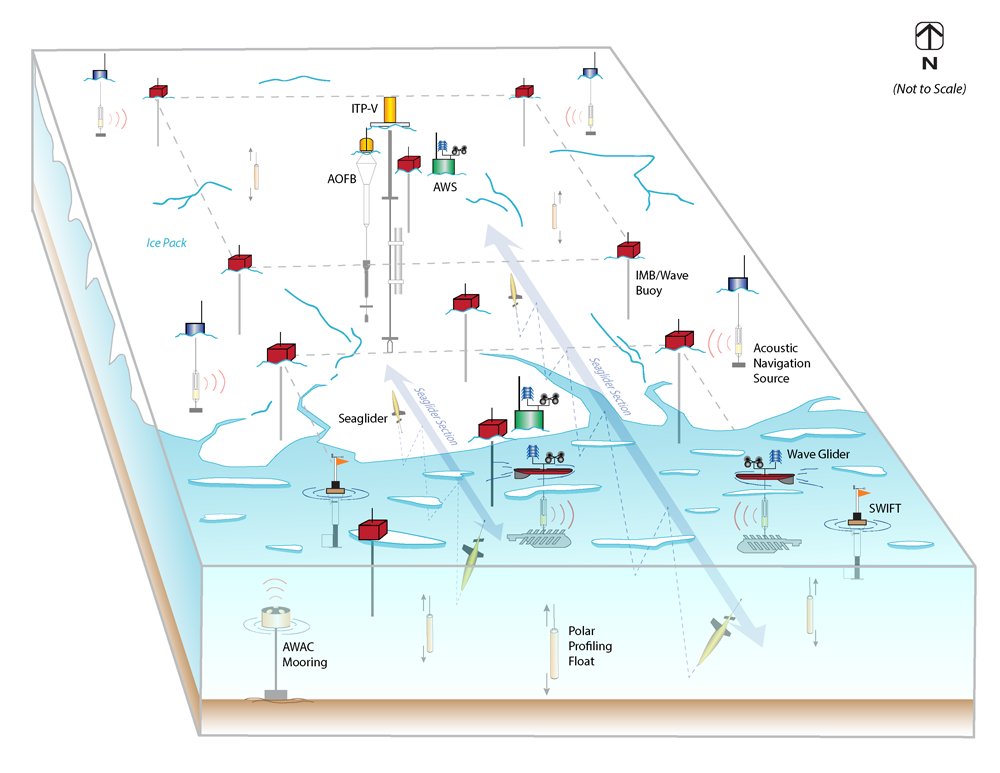

cartoon of sensors

UW Applied Physics Laboratory

A cartoon of sensors now installed in the Arctic Ocean. Weather stations (green boxes) sit on the ice. Ice-tethered buoys (yellow boxes) take measurements under the ice. Wave sensors (red) sit on the ice and in open water. Swimming robots (yellow) can travel in open water and below the ice, where they navigate using sound sources (gray boxes).

Lee will join the Korean icebreaker in August to place a fifth set of instruments and to study how chemistry and temperature affect microscopic marine organisms living in the ice.

Meanwhile, a team from the University of Miami is taking high-resolution satellite pictures of the ice floes that researchers will combine with the other observations.

“This field program will provide unique insight into the processes driving the summer melt of Arctic ice,” Lee said. “It’s the automation and unprecedented collaboration that allows us to be out there for the entire season,” he said. “You couldn’t afford to be out there at this intensity, for this length of time, any other way.”

###

For more information, contact Lee at 206-685-7656 and craig@apl.washington.edu or Rainville at 206-685-4058 and rainville@apl.washington.edu.

Lee will be at sea July 28 through Aug. 25 and available via email.

More information at www.apl.washington.edu/miz. High-resolution photos available here.
