UW scientists build a nanolaser using a single atomic sheet

News and Information

University of Washington scientists have built a new nanometer-sized laser — using the thinnest semiconductor available today — that is energy efficient, easy to build and compatible with existing electronics.

Lasers play essential roles in countless technologies, from medical therapies to metal cutters to electronic gadgets. But to meet modern needs in computation, communications, imaging and sensing, scientists are striving to create ever-smaller laser systems that also consume less energy.

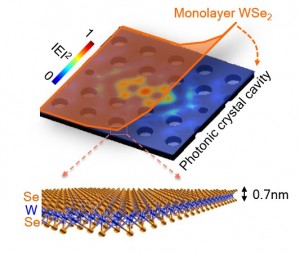

The ultra-thin semiconductor, which is about 100,000 times thinner than a human hair, stretches across the top of the photonic cavity.

The ultra-thin semiconductor, which is about 100,000 times thinner than a human hair, stretches across the top of the photonic cavity.U of Washington

The UW nanolaser, developed in collaboration with Stanford University, uses a tungsten-based semiconductor only three atoms thick as the “gain material” that emits light. The technology is described in a paper published in the March 16 online edition of Nature.

“This is a recently discovered, new type of semiconductor which is very thin and emits light efficiently,” said Sanfeng Wu, lead author and a UW doctoral candidate in physics. “Researchers are making transistors, light-emitting diodes, and solar cells based on this material because of its properties. And now, nanolasers.”

Nanolasers — which are so small they can’t be seen with the eye — have the potential to be used in a wide range of applications from next-generation computing to implantable microchips that monitor health problems. But nanolasers so far haven’t strayed far from the research lab.

Other nanolaser designs use gain materials that are either much thicker or that are embedded in the structure of the cavity that captures light. That makes them difficult to build and to integrate with modern electrical circuits and computing technologies.

The UW version, instead, uses a flat sheet that can be placed directly on top of a commonly used optical cavity, a tiny cave that confines and intensifies light. The ultrathin nature of the semiconductor — made from a single layer of a tungsten-based molecule — yields efficient coordination between the two key components of the laser.

The UW nanolaser requires only 27 nanowatts to kickstart its beam, which means it is very energy efficient.

Other advantages of the UW team’s nanolaser are that it can be easily fabricated, and it can potentially work with silicon components common in modern electronics. Using a separate atomic sheet as the gain material offers versatility and the opportunity to more easily manipulate its properties.

“You can think of it as the difference between a cell phone where the SIM card is embedded into the phone versus one that’s removable,” said co-author Arka Majumdar, UW assistant professor of electrical engineering and of physics.

“When you’re working with other materials, your gain medium is embedded and you can’t change it. In our nanolasers, you can take the monolayer out or put it back, and it’s much easier to change around,” he said.

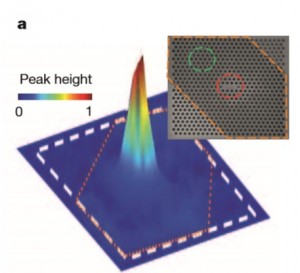

This emission map of the nano-device shows the light is confined by and emitted from the photonic cavity.

This emission map of the nano-device shows the light is confined by and emitted from the photonic cavity.U of Washington

The researchers hope this and other recent innovations will enable them to produce an electrically-driven nanolaser that could open the door to using light, rather than electrons, to transfer information between computer chips and boards.

The current process can cause systems to overheat and wastes power, so companies such as Facebook, Oracle, HP, Google and Intel with massive data centers are keenly interested in more energy-efficient solutions.

Using photons rather than electrons to transfer that information would consume less energy and could enable next-generation computing that breaks current bandwidth and power limitations. The recently proven UW nanolaser technology is one step toward making optical computing and short distance optical communication a reality.

“We all want to make devices run faster with less energy consumption, so we need new technologies,” said co-author Xiaodong Xu, UW associate professor of materials science and engineering and of physics. “The real innovation in this new approach of ours, compared to the old nanolasers, is that we’re able to have scalability and more controls.”

Still, there’s more work to be done in the near future, Xu said. Next steps include investigating photon statistics to establish the coherent properties of the laser’s light.

Co-authors are John Schaibley of the UW, Liefeng Feng of the UW and Tianjin University in China, Sonia Buckley and Jelena Vuckovic of Stanford University, Jiaqiang Yan and David G. Mandrus of Oak Ridge National Laboratory and the University of Tennessee, Fariba Hatami of Humboldt University in Berlin and Wang Yao of the University of Hong Kong.

Primary funding came from the Air Force Office of Scientific Research. Other funders include the National Science Foundation, the state of Washington through the Clean Energy Institute, the Presidential Early Award for Scientists and Engineers administered through the Office of Naval Research, the U.S. Department of Energy, and the European Commission.

For more information, contact Xu at xuxd@uw.edu and Majumdar at arka@uw.edu.

Grant numbers: AFOSR (FA9550-14-1-0277), NSF-EFRI-1433496, ECS-9731293, N00014-08-1-0561, FP7-ICT-2013-613024-GRASP
